Hydraulic
grab |
Hydraulic grab
design |
Hydraulic Grab is specially fitted with the all type of excavators. Its driving unit comes from the excavators. Grab bucket size and shape depends on the excavator lifting capacity and cargo categories. There are generally hydraulic clamshell grab, hydraulic orange peel grab and hydraulic timber grab.
Hydraulic grab
features |
1. Grab arm
structure is close-box girder. minimum weight with maximum rigidity and
strength. enhanced anti-collision capacity.
2. Grab connects with crane
hook by means of a large ring to facilitate the loading grab.
3. Hydraulic Grab scoops can be designed wtih
full close or half close for various material discharging.
4. All of grab
hydraulic system are protected with shields. the motor protective cover is
designed in the form of half-and –half.
5. All of grab pins are
seized by press plates. simple and reliable structure. nice appearance and easy
maintenance.
Hydraulic grab
parameters |
Type | Volume | Grab height | Dead weight |
(m3) | (t / m3) | (t) | |
YD0.5-0.1-00 | 0.1 | 1100mm | 0.25t |
YD1.0-0.2-00 | 0.2 | 1200mm | 0.3t |
YD2-0.3-00 | 0.3 | 1550mm | 0.6t |
YD2.5-0.4.00 | 0.4 | 1860mm | 1.0t |
YD3-0.5-00 | 0.5 | 1950mm | 1.2t |
YD4-0.6- 00 | 0.6 | 2100mm | 1.5t |
YD5-0.8-00 | 0.8 | 2200mm | 1.6t |
YD6-1.0-00 | 1 | 2300mm | 1.8t |
YD8-1.2-00 | 1.2 | 2400mm | 2.0t |

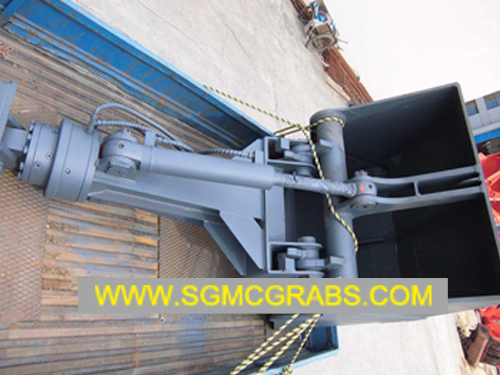

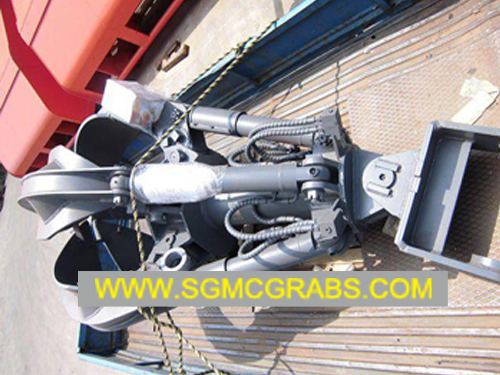

Hydraulic grab customer delivery |
